Nextteq Gas Detector Tubes-Configuration
Nextteq Gas Detector Tubes – Configurations
Nextteq Detector Tubes consist of one of the 5 following configurations:
SINGLE TUBE: 1 tube for a single measurement
TWIN TUBE (A) : 2 tubes for a single measurement
- 2 tubes that connect a pre-treat tube and a measurement tube using a connecting rubber tube - 2 tubes that connect a measurement tube and a post-treat tube using a connecting rubber tube
TWIN TUBE (B) : 2 tubes for a dual measurement
- 2 tubes that connect 2 measurement tubes using a connecting rubber tube that detects two different chemicals separately
TRIPLET TUBE: 3 tubes that connect a measurement tube and two pre-treat tubes with connecting rubber tubes

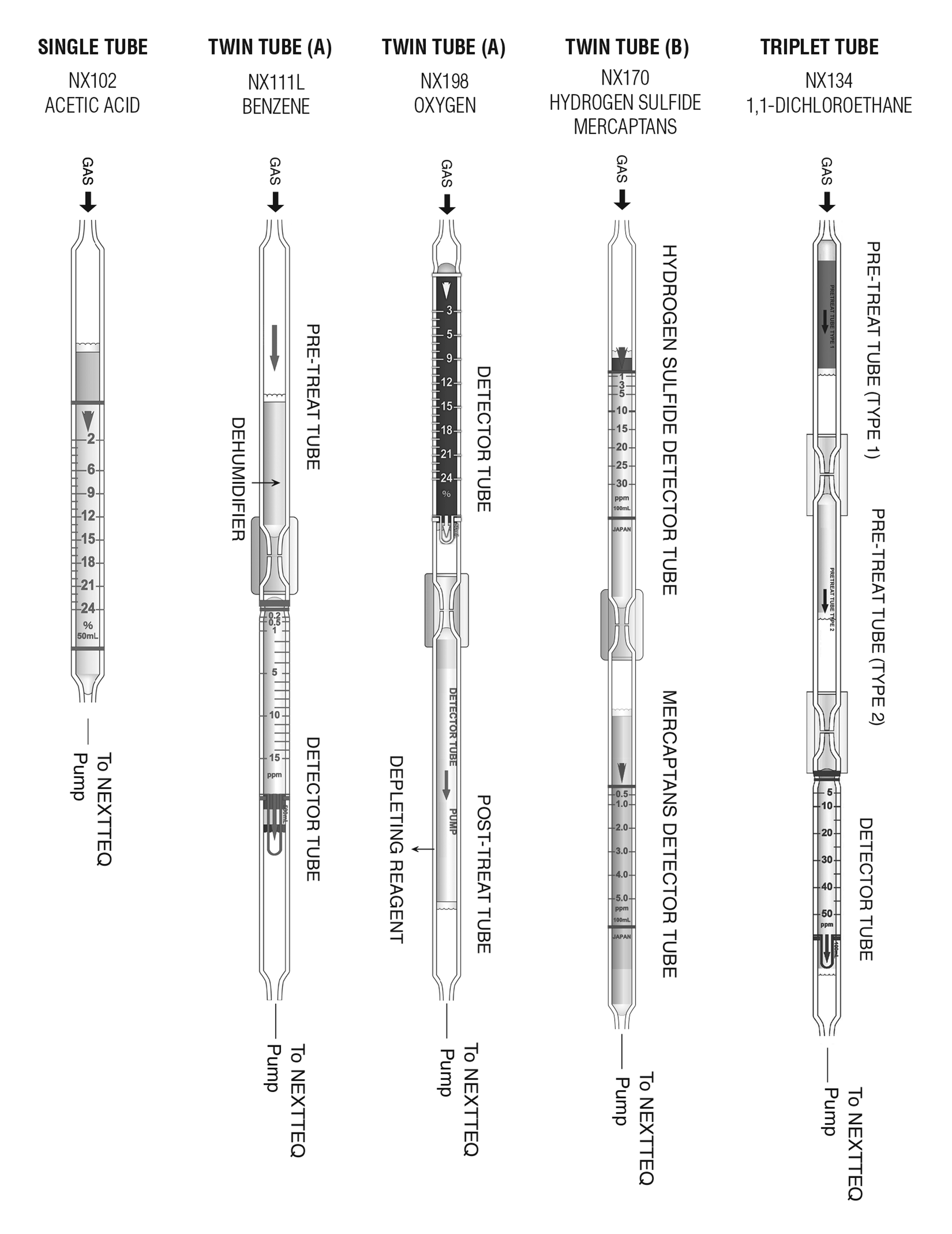

Examples of each are below:
