Nextteq Gas Detector Tubes-Configuration

Nextteq Detector Tubes consist of one of the 5 following configurations:

SINGLE TUBE: 1 tube for a single measurement

TWIN TUBE (A) : 2 tubes for a single measurement

- 2 tubes that connect a pre-treat tube and a measurement tube using a connecting rubber tube

- 2 tubes that connect a measurement tube and a post-treat tube using a connecting rubber tube

TWIN TUBE (B) : 2 tubes for a dual measurement

- 2 tubes that connect 2 measurement tubes using a connecting rubber tube that detects two different chemicals separately

TRIPLET TUBE:   3 tubes that connect a measurement tube and two pre-treat tubes with connecting rubber tubes

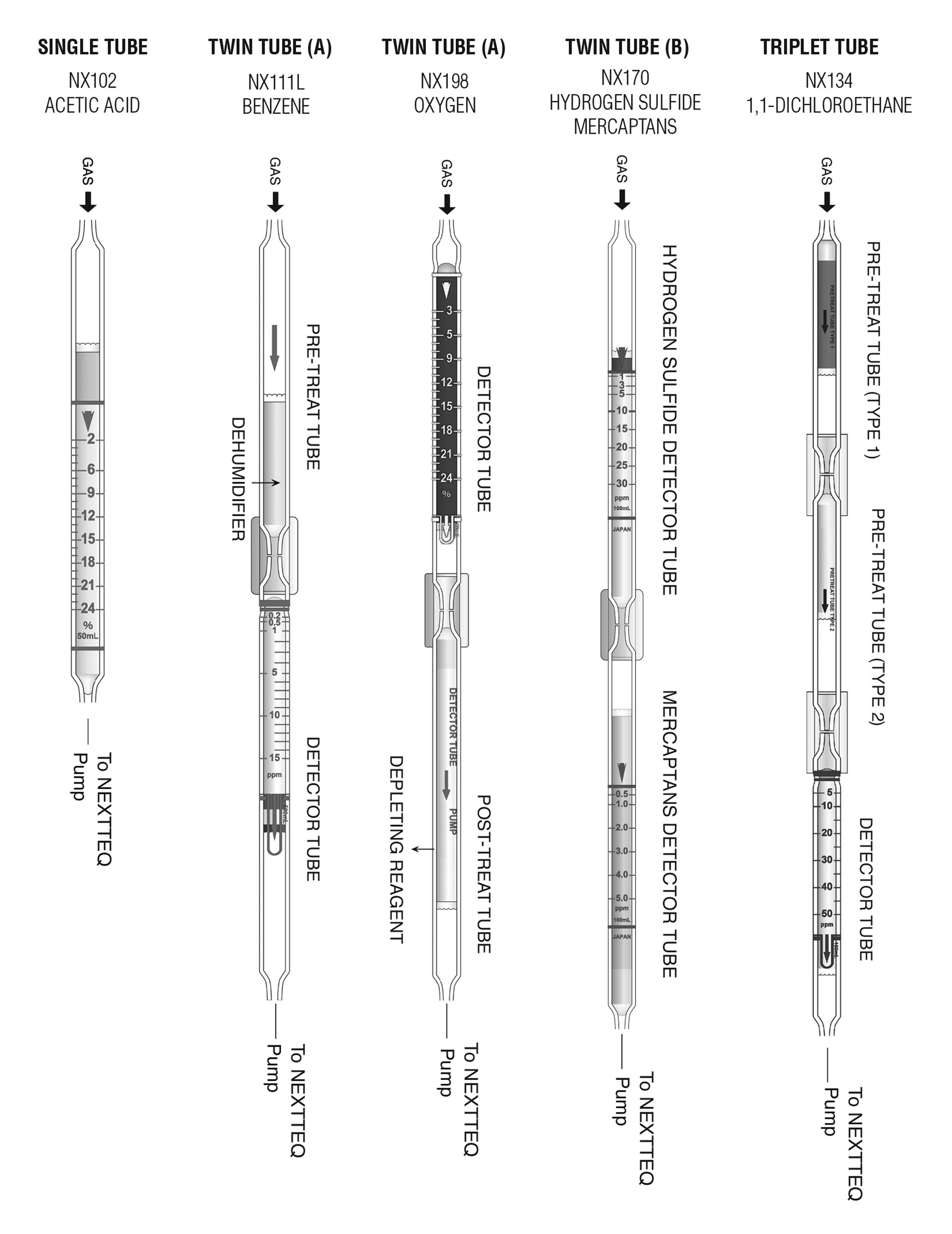

Examples of each are below:
